3D layers

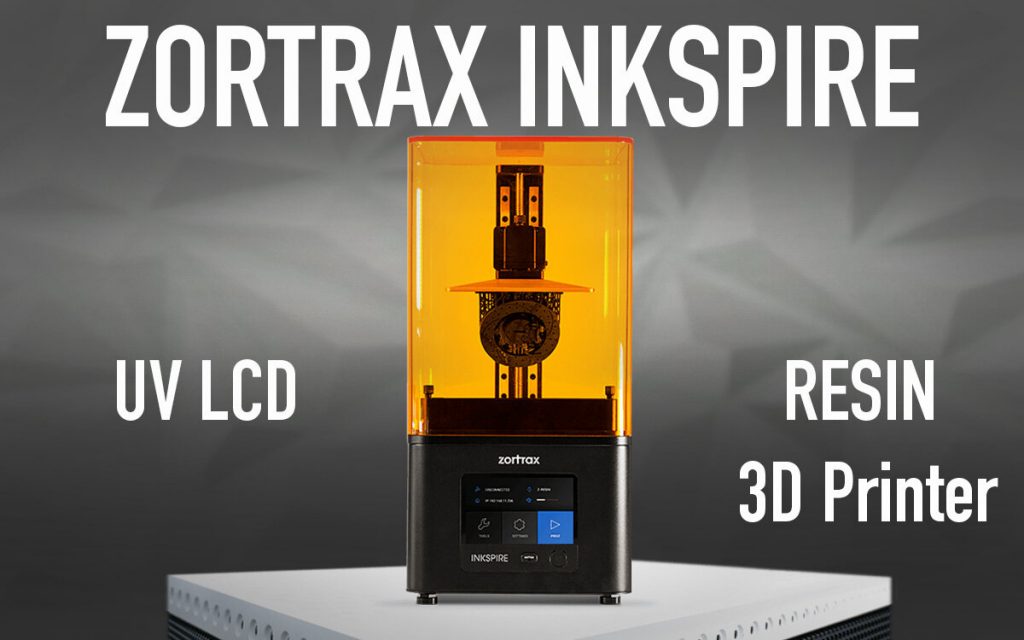

Zortrax Inkspire

Resin 3D printing made better

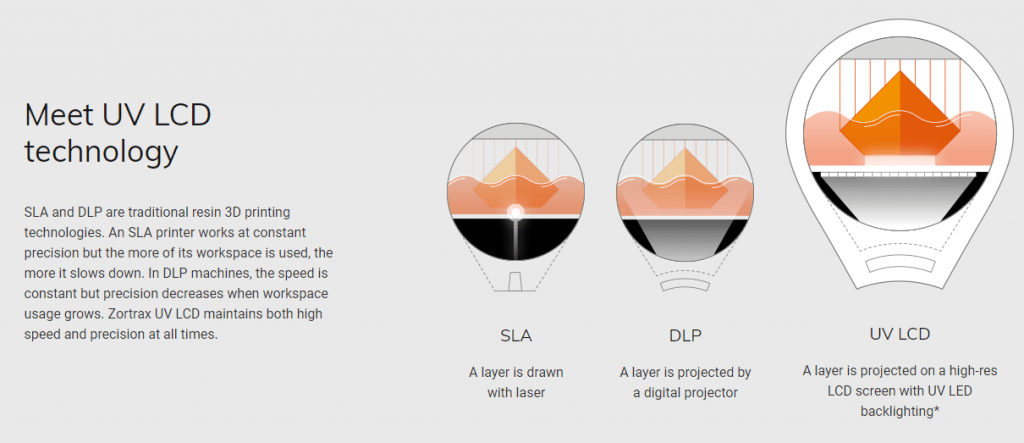

The technology behind Zortrax Inkspire relies on a high resolution LCD screen with UV LED backlighting to cure photopolymers layer by layer.

Technical Specifications
Build volume132 x 74 x 175 mm (5.2 x 2.9 x 6.9 in)
Platform calibrationSemi-automatic
SupportMechanically removed - printed with the same material as the model
Light sourceIntegrated UV lamp (wavelength 405 nm)
ConnectivityWi-Fi, Ethernet, USB
Operating systemAndroid
ProcessorQuad Core
Touchscreen4" IPS 800 x 480
TechnologyUV LCD
Pixel size50 microns (0.05 mm)
Layer thickness25, 50, 100 microns
