3D layers

Zortrax Inkspire

Ready for rapid manufacturing

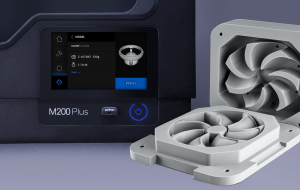

The M200 Plus 3D printer is designed for reliable, continuous operation over long periods of time. Industrial-grade build quality minimizes maintenance costs and guarantees repeatable, dimensionally accurate results.

Technical Specifications

Build Volume

200 x 200 x 180 mm [7.9 x 7.9 x 7.1 in]

Nozzle Diameter

0.4 mm [0.016 in] – standard / 0.3 mm [0.012 in] / 0.6 mm [0.024 in]

Extruder

Single (compatible with demanding materials, e.g. TPU or nylon)

Extruder Cooling System

Radial fan cooling the extruder block; two fans cooling the print

Hotend

Single (v3)

Platform

Heated; perforated and glass plates are applicable

Material Endstop

Mechanical

Connectivity

Wi-Fi, Ethernet, USB

Technology

LPD (Layer Plastic Deposition) – depositing melted material layer by layer onto the build platform

Layer Resolution

90 – 390 microns

Minimal Wall Thickness

450 microns – for 0.4 mm nozzle

Platform Levelling

Automatic measurement of platform points’ height
